AI Extension

The optional AI extension provides command-based authoring assistance inside the graph editor. It proposes targeted, preview-first changes — rewrites, line insertions, action insertions — that you confirm before they are applied. It does not expose a raw full-graph generation or import workflow in the shipped release.

Key files

• AiGraphCommandExecutor.cs — coordinates parse → validate → route → delegate
• AiInstructionRouter.cs — maps free-text instructions to command types
• AiCommandSafetyValidator.cs — rejects any AI response containing GUIDs, positions, or edge definitions
• AiJsonSanitizer.cs — strips markdown fences and fixes LLM encoding artifacts
• LlmProviderDefinitionBase.cs and providers

Draft-first pipeline

User instruction (free text)
    -> AiInstructionRouter (route + anchor resolve)
    -> AiPromptBuilder
    -> LLM Provider (HTTP)
    -> AiJsonSanitizer
    -> AiCommandSafetyValidator
    -> AiDraftResponseParser
    -> Preview window (human review)
    -- confirm -->
    -> DialogGraphMutationService (create nodes / edges / GUIDs)

Ownership boundaries

The AI layer may only return rewritten text, draft dialog line content, draft action references, and draft choice content. The core graph layer exclusively owns GUIDs, node positions, edges, graph serialisation, and undo records. Any AI response that includes forbidden fields is rejected by AiCommandSafetyValidator before the graph is touched.

Provider model

The provider abstraction is LlmProviderDefinitionBase, with concrete providers for OpenAI-style chat completions, Gemini, Ollama, and custom JSON APIs.

Shipped provider assets are templates only. For OpenAI-compatible services, prefer a root baseUrl plus /v1/chat/completions in chatEndpoint.

Editor entry point

Open any DialogGraph asset via Tools → Dialogue Graph System → Dialogue Graph, then select the AI tab in the right sidebar.

AI sidebar controls

• Instruction field — multi-line free-text input. Describe what you want in plain language (e.g. "rewrite this line to sound more nervous", "add 3 dialog nodes before the end").
• Tone selector — Neutral, Serious, Humorous, Dramatic, Casual, Poetic. Applied as a style hint in the prompt.
• Instruction preset — None, Write Naturally, Keep It Short, Add Subtext, Make It Tense. Adds a system-level writing directive to every prompt.
• Run button — routes the instruction, resolves the anchor node, dispatches to the handler, and opens the preview window.
• Routing explanation label — shows which command was detected, the confidence score, and which anchor node was matched.
• Low-confidence anchor warning — if the anchor match confidence is below 0.75, a warning is shown with the matched node title before execution. You can cancel or proceed.
• Context summary — shows the loaded graph name, active speaker count, and available action count.

Command reference

The AI extension supports 13 command types, all routed automatically from your free-text instruction.

LLM providers

Providers are ScriptableObject assets. API keys are stored in EditorPrefs per asset GUID and are never written into the asset file or committed to version control.

Sample provider assets are in Assets/DialogSystemAIExtension/Samples/Assets/Provider/. Duplicate one and set your own API key and model — samples are templates only.

Token usage and temperature

Each provider asset exposes two generation controls you can tune per-provider:

• Max Tokens — maximum number of tokens the model may return per response. Default is 512. Increase for longer generation commands like GenerateDialogFlowDraft; lower it for single-node rewrites to reduce cost and latency.
• Temperature — controls output randomness. Default is 0.7. Lower values (0.3–0.5) produce more predictable, conservative text; higher values (0.9–1.0) produce more varied and creative output.

Context depth — how much of the graph the AI sees

The AI sidebar includes a Context Depth dropdown that controls how much graph content is included in each prompt. More context produces better results but uses more tokens.

Each command type has a sensible default depth selected automatically. You can override it with the dropdown before running any command.

DialogSpecificationSO

A ScriptableObject for structured narrative context, used by GenerateDialogFlowDraft. Create one via Assets → Create → Dialogue Graph System → AI → Dialogue Specification and assign it in the Context tab of the graph editor sidebar.

• conversationDepth (2–20) — how many exchanges to generate.
• characters — list of DialogCharacterSO assets participating in the scene.
• environment — location, description, time of day, mood.
• gameContext — genre, player role, narrative style, canon rules.
• sceneSummary, tone — free-text directives.
• allowedActions / forbiddenActions — constrain which action IDs the AI may suggest.

Safety and recovery

AiJsonSanitizer handles common LLM formatting issues such as markdown fences and stray prose. If a response is recovered from malformed output, a warning banner appears in the preview — review the draft carefully before confirming.

AiCommandSafetyValidator rejects any AI response that contains GUIDs, node positions, or edge definitions before the graph is touched. The AI layer is structurally prevented from owning any graph mutation.

AI tab in the graph editor sidebar

Command input, tone and preset selectors, routing explanation label.

Draft preview window

Shows the proposed change before it is applied to the graph.

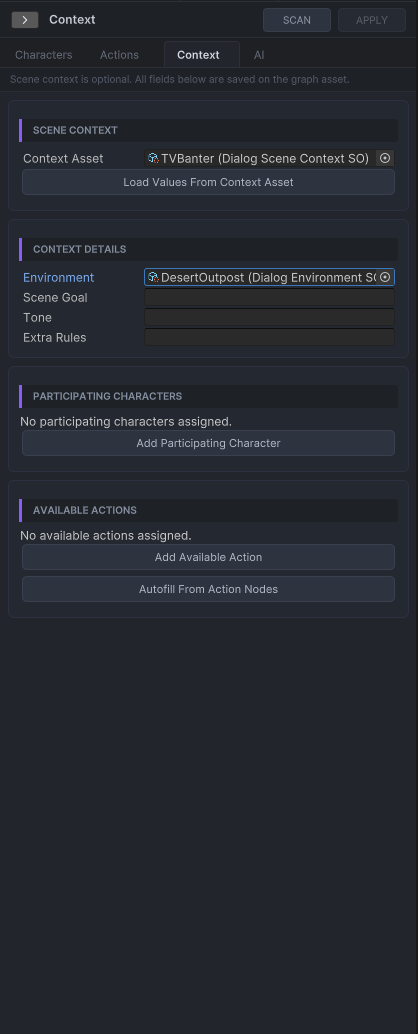

Context sidebar

Scene summary, world context, and specification asset for GenerateDialogFlowDraft.

Branch review panel

Proposed branch additions shown for review before being committed to the graph.
