JSON Import and Export

The Production workspace exports graph JSON and validates an import preview before it creates or replaces a graph asset. Keep your original graph and review the result after every import.

Key files

ImportExportEmbedded.cs (the current workspace UI)
DialogGraphJsonSerializationUtility.cs and DialogGraphImportTransactionService.cs
DialogJsonImportBridge.cs

Editor entry point

Open Tools > Beka Forge > Dialogue Graph System > Open Editor, select Production, then choose the Import / Export subtab. The embedded tool has Export and Import cards.

Interactive preview: Production, recreated from the 4.0 editor source with example values. Choose the Import / Export subtab to inspect the JSON cards; nothing is exported or saved. Open the full preview.

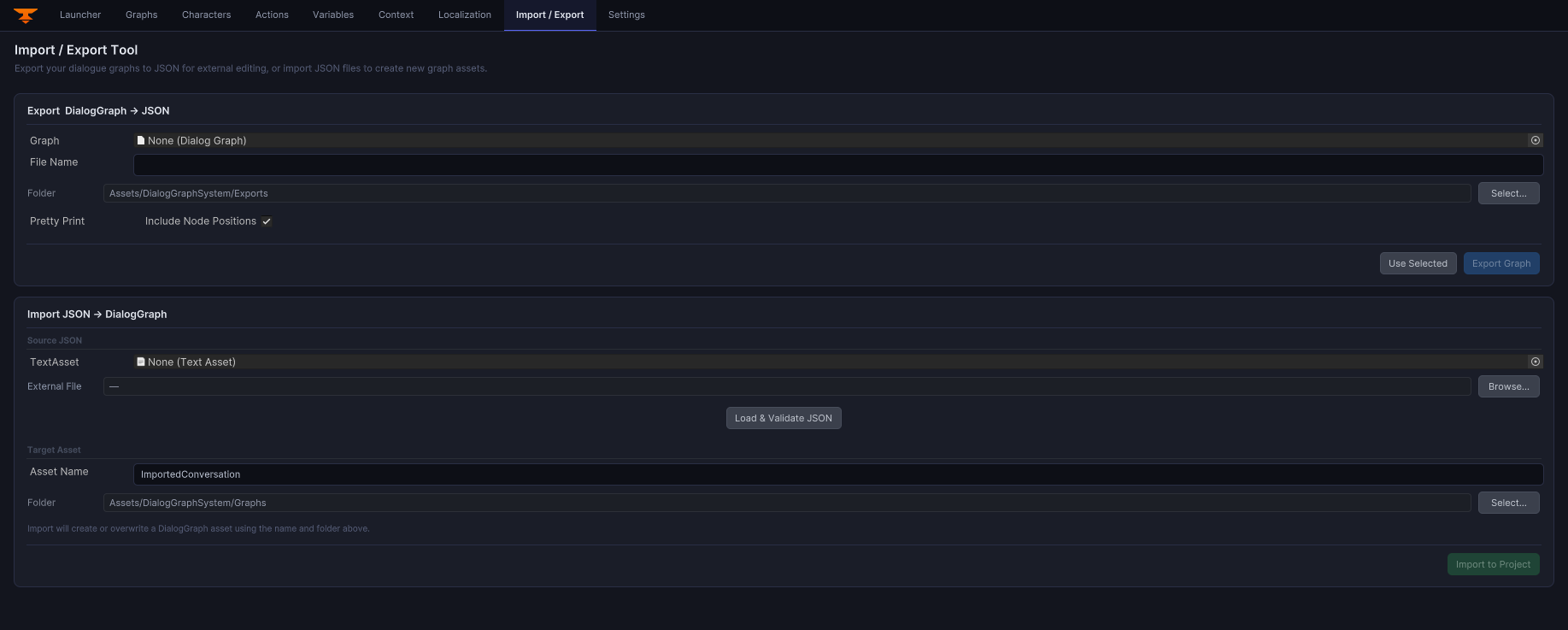

Production Import / Export workspace with JSON export and import forms idle and no graph or source JSON selected. — Native Import / Export workspace. No graph or source JSON is selected, so the export and import actions are idle.

Export workflow

Choose a DialogGraph, enter an output filename and an in-project destination, then use Pretty Print and Include Node Positions as needed. Confirm the overwrite prompt before replacing an existing JSON file. Export is graph data, not a Unity package or complete project backup.

Import workflow

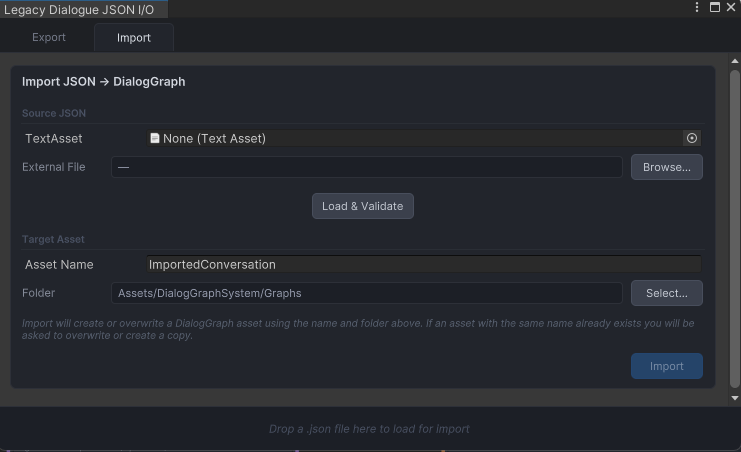

Select a TextAsset or browse to an external JSON file, set the destination folder and name, then click Load & Validate JSON. Review the preview and validation messages before Import to Project. A new import creates an independent copy. If that destination name already exists, read the prompt carefully: create a copy or explicitly confirm overwrite. The lower-level importer also supports identity-preserving Restore for a matching existing target; that specialized mode is not needed for ordinary reuse.

Import bridge

DialogJsonImportBridge is an editor API that validates the DTO and executes an import transaction. The UI previews content and reports import stages or refusals. It rebuilds supported graph and node data and selects the resulting asset; open it in Graphs to inspect it. Treat external JSON as untrusted and do not overwrite a valuable graph without a backup.

Best practices

export graphs before making large structural edits
keep imported JSON under review if it comes from external tooling
keep a separate backup before overwriting an existing graph
use an independent copy for ordinary reuse; reserve identity-preserving Restore for recovery of a matching existing target
revalidate graph references after import

See the current DGS 4.0 editor screenshots.
